Expanded Rim Solid Tyres

20.5 R 25 Expanded Rim Solid Cushion Tyre
Conceived in 1988, SETCO's expanded rim solid tyre was designed, using 100% natural rubber, for performance in extreme and abusive applications, where nothing else would work! The expanded rim solid tyre is manufactured by bonding rubber directly to SETCO's custom manufactured rim and with hundreds of molds of different sizes, SETCO can manufacture an expanded rim solid tyre for virtually any make and model machine such as:

  • Front End Loaders (Loading Shovels)
  • Backhoes
  • Material Handlers
    • As "Super Single" design that eliminates wheel damage due to objects getting stuck between the traditional dual wheel assemblies
  • Underground Mining Equipment
  • Port and Container Handlers

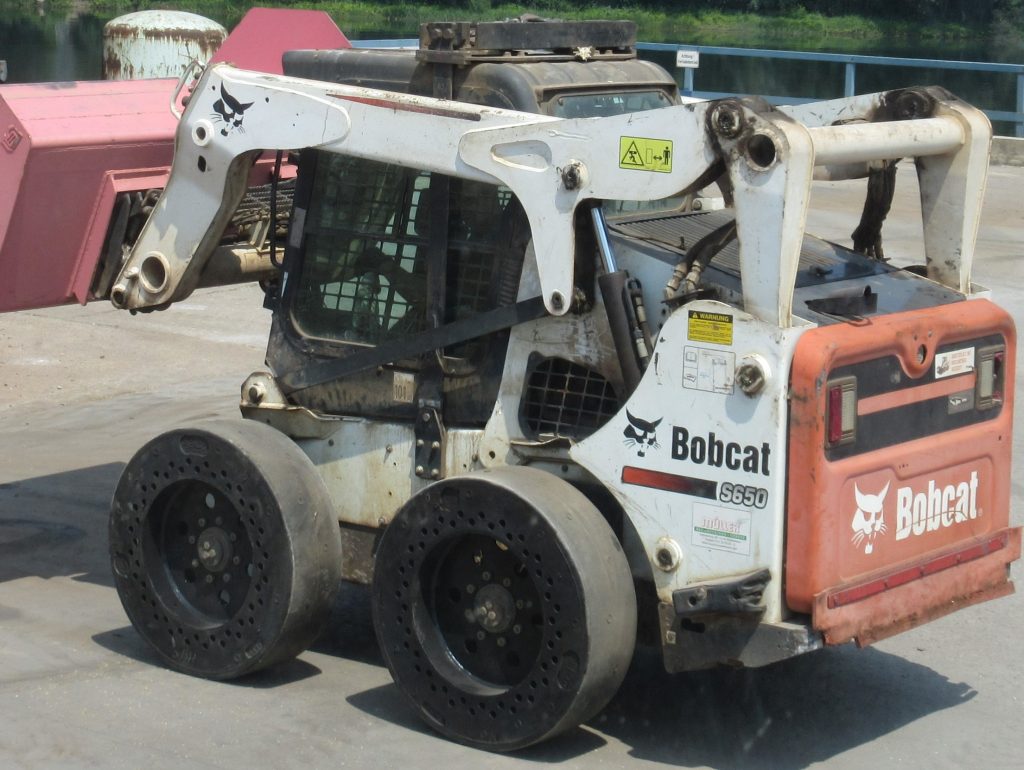

  • Skid Steers
  • Telehandlers
  • Haul Trucks
  • Forklifts

SETCO can manufacture its rims with interchangable centreplates, allowing a tyre to be fitted to different make and model machines.

SETCO's expanded rim solid tyres are available with many different tread design and comfort options.

Comfort Options:
  • Classic
  • Air Ride (Cushion holes in sidewall)
  • Soft Ride (Extra soft rubber at base of tire)
  • Air Ride & Soft Ride (Combination of both technologies)

Tread Designs:
  • Slick
  • Staggered Gear Lug (4, 8 or 16 lugs per side)
  • Variety of other highly aggressive tread designs
20.5R25 Expanded Rim Solid Tyre with Air Ride Comfort and Staggered Gear Lug (8 lugs per side) tread design with interchangeable centreplates

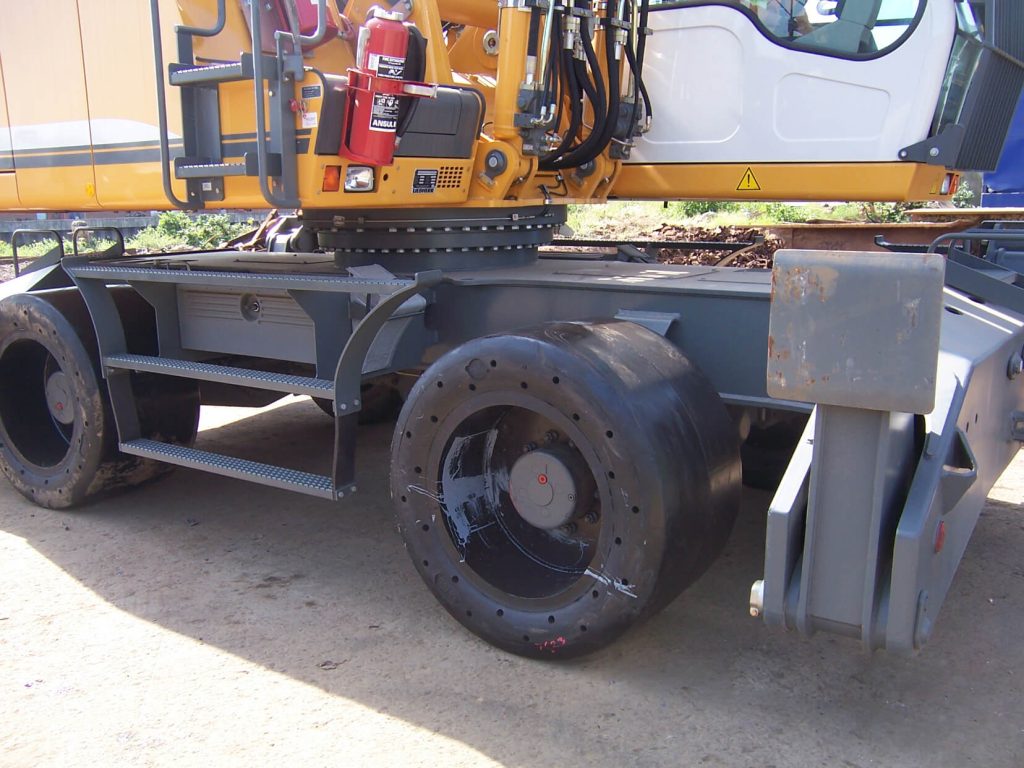

Material Handler Super Single Solid Tyre
12.00x20 Super Single Material Handler Tyre with cushion holes

Press-On Solid Tyres

SETCO also manufactures press-on solid tyres that can be fitted on existing OEM rims.

Using the same 100% natural rubber compound as in the expanded rim tyre, SETCO's press-on solid tyre will wear as well as the expanded rim tyre at a lower price.

The flat side-wall design will also ensure that the tyre wears evenly and flat, which keeps the ground pressure, and wear, as low as possible throughout the entire tyre life.

SETCO's press-on solid tyres are available in following options:

Comfort Options:
  • Classic
  • Air Ride

Tread Designs:
  • Slick
  • Staggered Gear Lug (4, 8 or 16 lugs per side)
29.5R25 Press-On Tyre with Air Ride Comfort and Slick tread design

Underground Mining Solid Tyres

SETCO has the flexibility to custom manufacture solid rubber mining tyres to haul the heaviest loads. SETCO can easily change the entire dimensions on solid mining tires by varying the rubber depth for maximum load and carry, and utilize its custom heat dissipating rubber compound that minimizes heat throughout the entire solid tyres on rims to maximize load capacities.

SETCO's underground mining tyres are also available in a wide variety of aggressive tread designs.


Underground mining tyre with GT08 aggressive tread design
